VolTrust 12kW 120/240V Split-Phase Hybrid Inverter with 200A Bypass
[200A Utility Bypass] - The VOLTRUST V-US-12kW-BP features built-in 200A utility pass-through to supply connected home loads directly from the grid in bypass mode. The 200A rating applies to the AC pass-through path, not battery current or battery-mode output.
[Flexible Home Power] - With 12kW rated output and 120V/240V split-phase power, this inverter supports compatible everyday appliances and larger household equipment. Plan simultaneous loads around available power, phase loading, and appliance startup requirements.
[Dual MPPT Tracking] - Independently track two solar arrays with 12,000W + 12,000W maximum DC input power, 32A + 32A maximum MPPT input current, and 500V maximum DC input voltage. Solar input capacity is separate from the inverter's 12kW output rating.
[Smart Energy Scheduling] - Configure up to three utility charging and load-supply periods and three battery discharge periods to match your household routine and local time-of-use electricity rates.
[Expandable Parallel Capacity] - Build toward higher power demand with support for up to six inverters in parallel. Confirm the exact model suffix, unit compatibility, battery capacity, and installation requirements before expanding your system.
[Remote System Monitoring] - The included Wi-Fi module connects the inverter to its supported monitoring platform, helping you check system status remotely through a compatible mobile app and an active network connection.
[Integrated System Protection] - Built-in AFCI, short-circuit, overload, anti-backflow, battery, and grid protection functions help safeguard daily operation. Complete the system with the external protective devices specified in the installation manual.
Shipping calculated at checkout.
Services & Benefits
Free Shipping
Free shipping is available on eligible products and U.S. destinations when shown on the product page or at checkout. Additional charges may apply for remote locations, freight delivery, or special handling.
View shipping policy30-Day Return Window
Eligible items may be returned within 30 days of delivery with prior approval from VolTrust. Products must be unused, uninstalled, and returned in their original condition with all packaging, accessories, manuals, and proof of purchase. Return shipping is the customer's responsibility unless the return is due to a confirmed VolTrust error or verified product issue.
View return policyShips from Our US Warehouse
Eligible in-stock orders ship from our NJ warehouse. Most orders are processed within 1–3 business days and typically arrive within 3–8 business days after shipment. Delivery times are estimates and may vary by destination, carrier schedule, weather, and freight requirements.
View delivery details2-Year Warranty
This VolTrust inverter is backed by a 2-year limited warranty covering verified defects in materials or workmanship under normal use. Warranty eligibility and available remedies are subject to the product condition, proof of purchase, installation details, and technical review.
View warranty policyOrders placed on weekends will be processed the following business day.
Flexible Home Power
The VOLTRUST 12kW inverter delivers 120V/240V split-phase output for everyday electronics and larger household appliances, giving you flexible power options for your home.

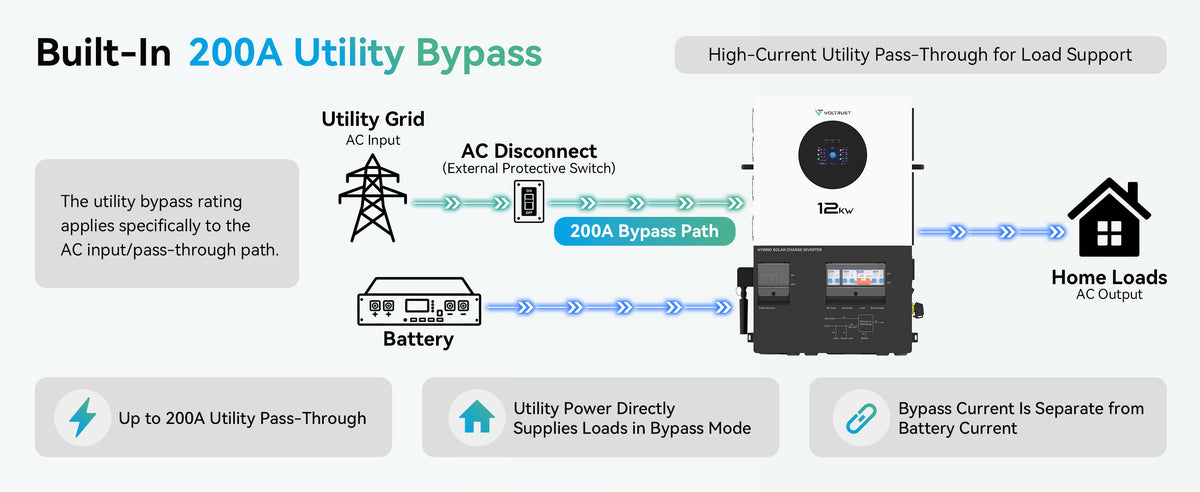

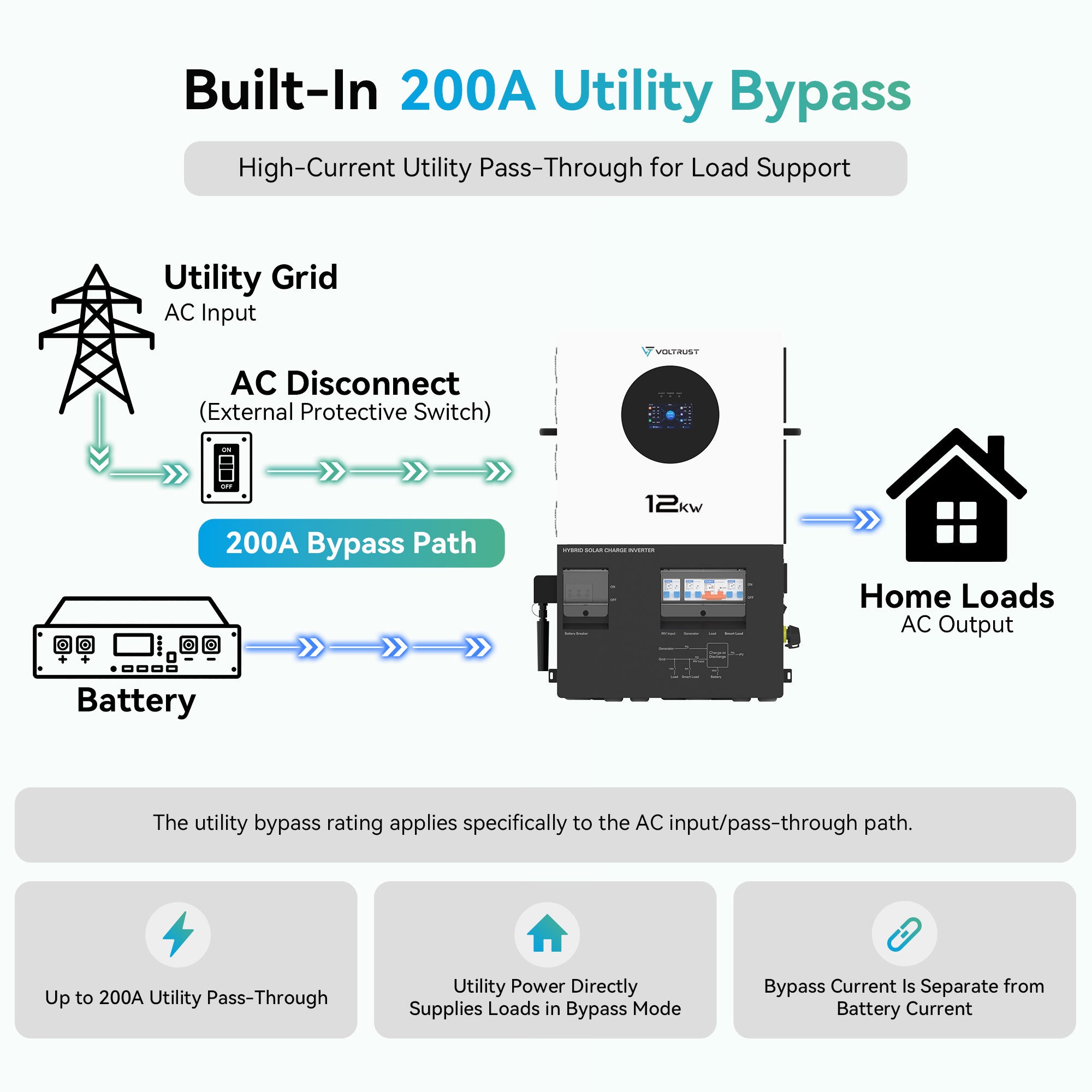

200A Utility Bypass
Built-in 200A utility bypass allows grid power to supply home loads directly in bypass mode. The 200A rating applies to utility pass-through, not battery current or inverter output.
Dual MPPT Tracking
Dual MPPT inputs independently track two solar arrays, supporting up to 12,000W per input, 32A + 32A MPPT input current, and a maximum DC input voltage of 500V.

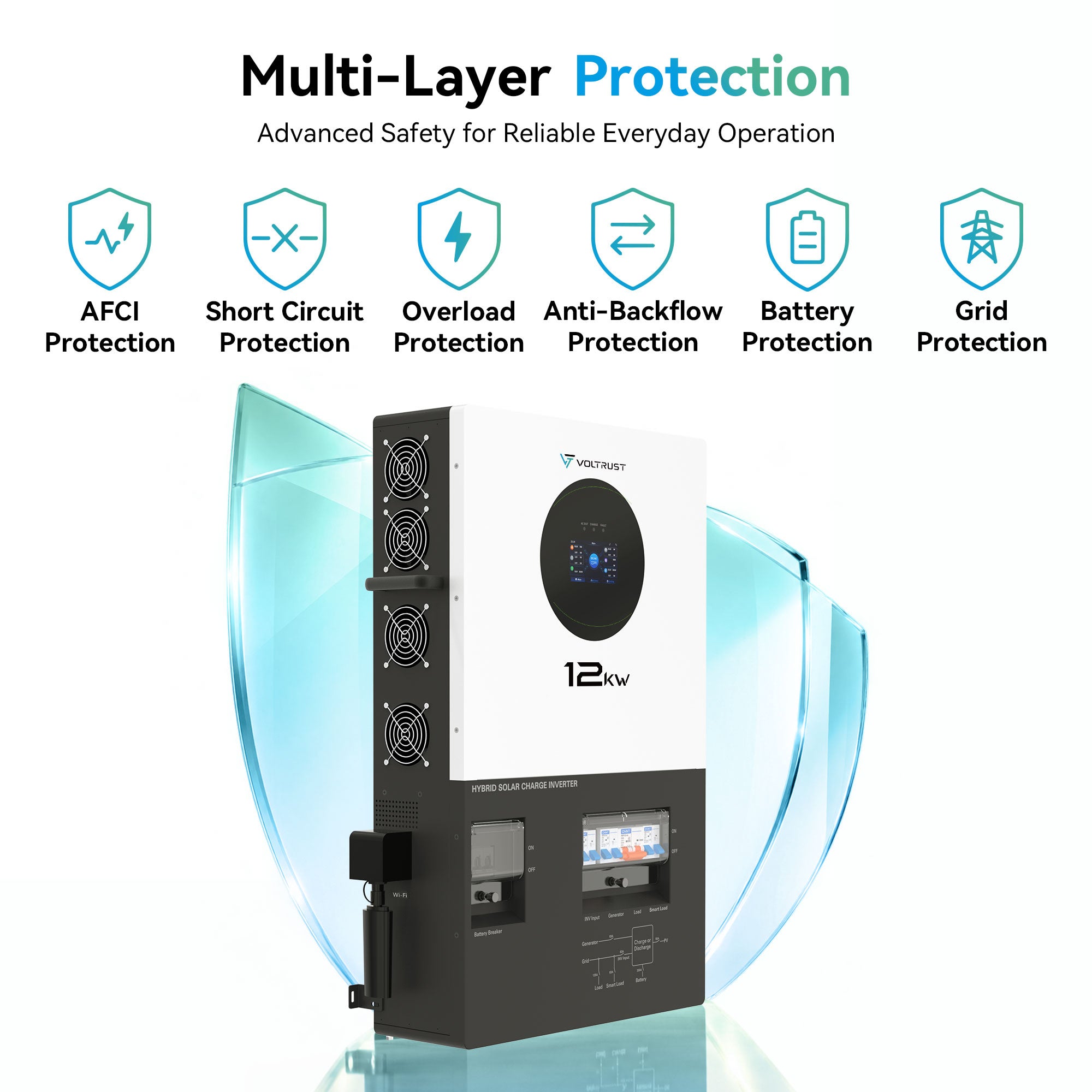

Built-In System Protection
The VOLTRUST 12kW inverter combines AFCI, short-circuit, overload, anti-backflow, battery, and grid protection functions to help safeguard your home energy system.

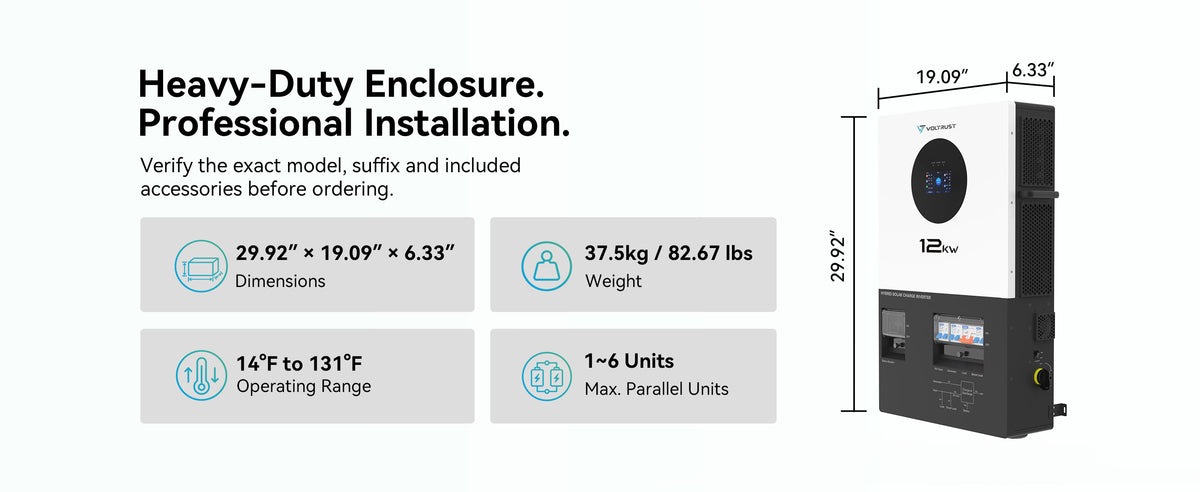

Size and Scalability
Measuring 29.92 × 19.09 × 6.33 inches and weighing 82.67 lbs, this inverter supports up to six units in parallel, with an operating temperature range of 14°F to 131°F.

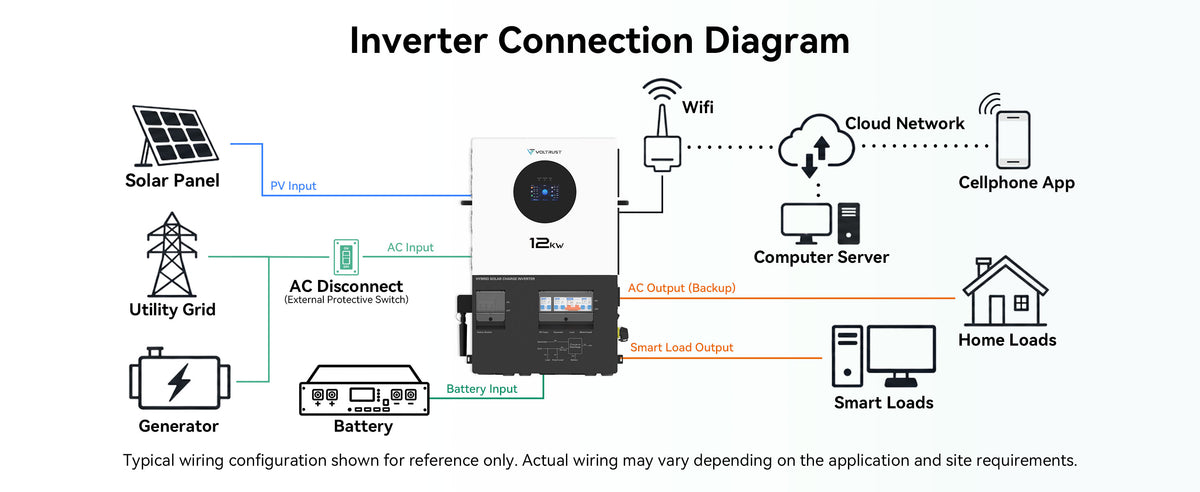

Home Energy Connections
Explore how the VOLTRUST inverter connects with solar panels, battery storage, utility or generator power, and household loads, with Wi-Fi connectivity for remote monitoring.

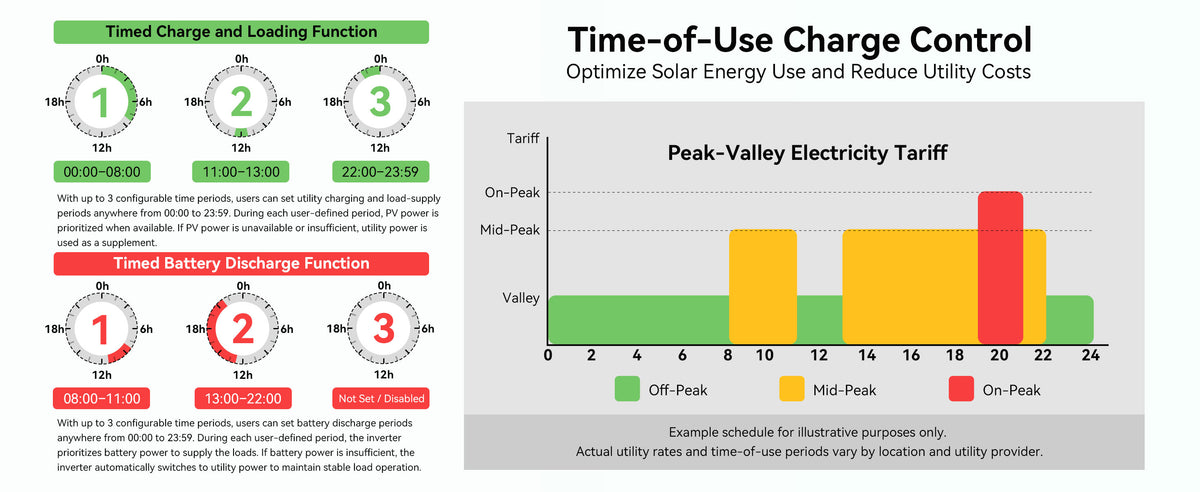

Everyday Power Applications
Set up to three utility charging and load-supply periods and three battery discharge periods to align energy use with your household routine and local time-of-use electricity rates.

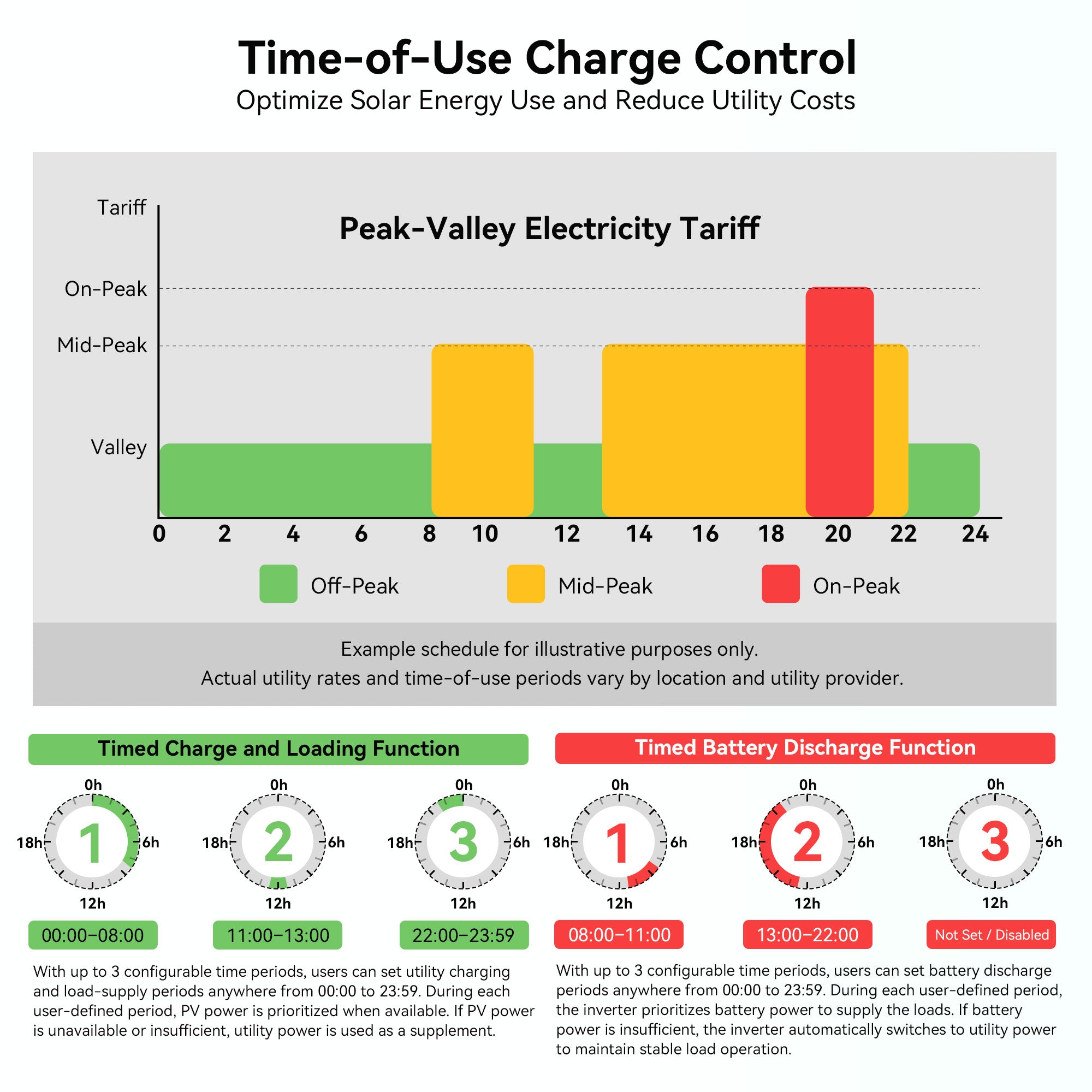

Smart Energy Scheduling
Set up to three utility charging and load-supply periods and three battery discharge periods to align energy use with your household routine and local time-of-use electricity rates.

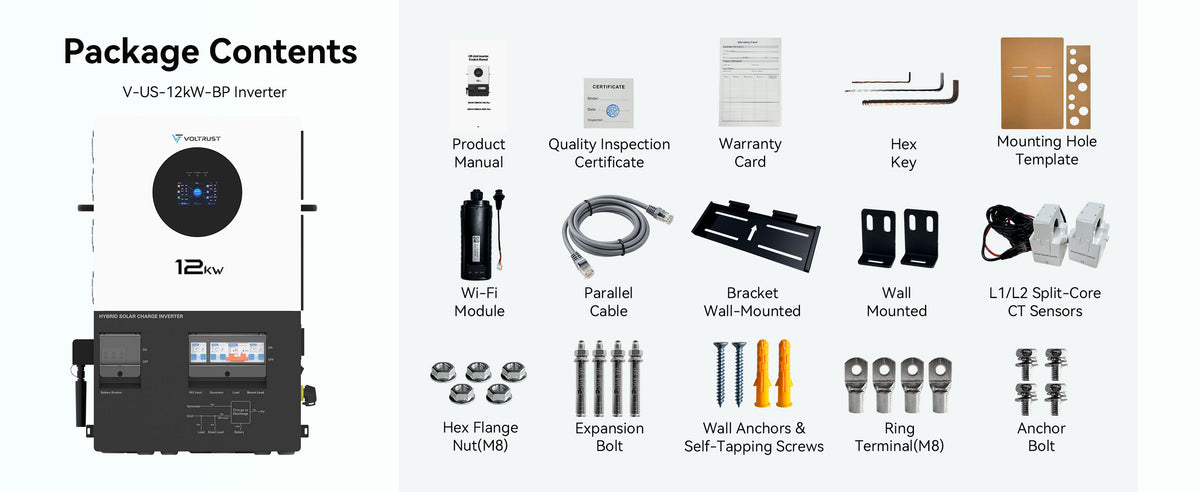

Inside Your Package
Review the V-US-12kW-BP package contents, including the inverter, Wi-Fi module, parallel cable, L1/L2 CT sensors, mounting hardware, and product documentation.
Product Documents
FAQs
What does the 200A utility bypass do for my home?
The built-in 200A utility bypass lets grid power supply connected home loads directly in bypass mode. 200A refers to the AC input/pass-through path; it is not the battery current or the inverter's battery-mode output rating. The inverter is rated at 12kW, and the battery bank and connected loads must be sized accordingly.
Can I power both everyday appliances and larger 240V equipment?
Yes. The VOLTRUST V-US-12kW-BP provides 120V/240V split-phase output for compatible household loads, from lighting and refrigerators to selected HVAC, water-heating, and EV-charging equipment. Which appliances can run together depends on total demand, startup surge, phase loading, and available battery power. The 200A utility bypass does not mean every appliance can run simultaneously during an outage.
How much solar input can I connect?
The inverter features two independent MPPT inputs, with a listed maximum DC input power of 12,000W + 12,000W, maximum MPPT input current of 32A + 32A, and maximum DC input voltage of 500V. Solar-array sizing must stay within all input limits in the model's manual. PV input capacity does not increase the inverter's 12kW output rating.
How do I choose a compatible battery bank?
Choose a battery bank that matches the inverter's specified battery voltage range, charge settings, and communication requirements. Its BMS and discharge capability must support your intended loads. Size the bank using battery energy capacity and current capability, rather than the 200A utility bypass rating, and confirm compatibility with the V-US-12kW-BP before ordering.
How long will my home run on battery power?
Runtime depends on usable battery capacity, average load, reserve settings, and system losses. A larger battery bank or lower power demand can extend backup time. The 12kW rating describes output power, not stored energy, so it does not determine how many hours your home can run.
Can I schedule charging and battery use around electricity rates?
Yes. You can configure up to three utility charging and load-supply periods and up to three battery discharge periods. These schedules help align energy use with your daily routine and local time-of-use rates. Any savings depend on your tariff, solar production, battery capacity, and usage pattern.
Can I check the system from my phone?
The package includes a Wi-Fi module for connecting the inverter to its supported monitoring service and mobile app. Remote monitoring requires a working network connection and the appropriate account setup. Follow the inverter's setup instructions for the correct app and available monitoring features.
Can I expand the system with more inverters later?
The product information lists support for up to six units in parallel. Before expanding, confirm that the exact model and suffix support parallel operation and that the units, communication connections, and system configuration are compatible. Expansion also requires suitable battery capacity, wiring, and load distribution.
What protection features are built in?
Listed protection functions include AFCI, short-circuit, overload, anti-backflow, battery, and grid protection. These functions help protect the energy system during operation. Installation still requires the external protective devices and installation measures specified in the product manual.
Can the system work with a generator?
The system connection overview includes generator power alongside solar, utility power, and battery storage. Generator compatibility, connection points, and input settings must be confirmed for the exact inverter model. Have the installer follow the model-specific manual when planning generator integration and source switching.
What space and installation conditions should I plan for?
The listed dimensions are 29.92 × 19.09 × 6.33 inches, and the unit weighs 37.5kg / 82.67 lbs. The stated operating temperature range is 14°F to 131°F (-10°C to 55°C). Plan for suitable wall support, ventilation, service access, and the clearances required by the manual. Have a qualified installer confirm the mounting location and electrical layout.
What comes in the V-US-12kW-BP package?
The pictured package includes the inverter, Wi-Fi module, parallel cable, L1/L2 split-core CT sensors, mounting hardware, and mounting-hole template, plus the product manual, quality inspection certificate, and warranty card. Check the selected product option and final packing list for the supplied accessories.
