RV Lithium Battery Sizing Guide: Capacity, Inverter Load and Runtime depends on the electrical system and real duty cycle. Verify nominal voltage first, then compare usable energy, continuous and short-duration current, charger settings, cable protection, mounting, temperature limits, and the load profile you expect on the road or water.
Record the load or motor model, operating voltage, maximum current, charger output, cable run, compartment dimensions, and expected hours of use before choosing capacity. Treat this page as the sizing hub, then use its supporting articles for the detailed checks.
Record these system details first
Use this worksheet before treating a product as compatible. Record the source of every answer instead of relying on memory or a seller's generic voltage label.
| Check | What to record | Why it matters |
|---|---|---|
| System voltage | Equipment and charger labels | Battery voltage must match |
| Load demand | Running and peak current | Must remain inside verified limits |
| Energy need | Average watts x operating hours | Sizes capacity and reserve |
| Wiring | Cable length, terminals, fuse/breaker | Controls voltage drop and fault protection |
| Mounting | Dimensions, restraint, moisture exposure | Protects the battery in motion |
Work through the system in this order
| Stage | Action | Evidence retained |
|---|---|---|
| Define the decision | Confirm Daily energy and Peak power | Keep watt-hours for dc and ac loads and inverter surge and direct-dc starts |
| Check the system | Document Recharge | Record shore, solar, alternator, generator energy |
| Plan validation | Test or review Travel reserve | Observe no-charge days and weather margin |
| Close open items | Assign every conditional or unresolved item | Record the source, owner, and next action |
Build one summer and one cold-weather RV day from measured loads. Keep energy consumption, peak current, recharge received, and reserve in separate columns so increasing capacity does not hide an inverter or charging bottleneck.
Establish daily energy
Establish daily energy from watt-hours for DC and AC loads. This evidence sets required capacity. Note the source, date, operating condition, and any uncertainty so an installer or reviewer can reproduce the conclusion.
Confirm peak power
Confirm peak power before moving to capacity or price. Use inverter surge and direct-DC starts; a typical value from another cart or system is not evidence for this installation. This check tests current capability. If labels and manuals disagree, pause and resolve the conflict.
Document recharge
Add recharge to the project record using shore, solar, alternator, generator energy. This detail determines recovery. Photograph labels and measurements where practical, and identify any non-stock equipment or modified settings rather than mixing them with factory specifications.
Validate travel reserve
After the paper review, validate travel reserve under a representative, controlled condition. Compare the observation with no-charge days and weather margin. This check protects availability. A favorable no-load reading is not enough; review warnings, connection temperature, voltage behavior, and the rest of the system before normal use.
Turn the findings into a go or no-go decision
Write one conclusion that addresses Daily energy, Peak power, Recharge, and Travel reserve. Mark each item confirmed, conditional, or unresolved. A go decision requires every safety- and compatibility-critical item to be confirmed from a current manual, equipment label, measurement, or qualified review. Conditional items need a named action and owner; unresolved items are reasons to pause the purchase or installation, not details to solve after energizing the system. State which source confirmed Daily energy, who is responsible for resolving Peak power, and what observation would cause the decision about Recharge to be reviewed again.
Use a controlled validation plan
Before the check, capture watt-hours for dc and ac loads and inverter surge and direct-dc starts. During a supervised test, keep the starting condition repeatable and observe shore, solar, alternator, generator energy. Afterward, inspect and record no-charge days and weather margin, warnings, unusual heat, connection movement, and any change from the expected behavior. Stop immediately if the procedure would require bypassing protection, exceeding a documented limit, or working on energized equipment without the required qualifications.
Build a 24-hour RV load profile
List each 12V load and each AC appliance powered through the inverter. Record running watts, starting surge, duty cycle, and hours per day. Convert the total to watt-hours, then add a reserve for temperature, wiring loss, inverter loss, and schedule changes.
Separate inverter size from battery capacity
The inverter must start and run the selected AC loads; the battery must supply the resulting DC current. A large amp-hour battery does not guarantee enough current for a large inverter, and an oversized inverter can create unnecessary standby loss.
Plan every charging source
Check shore charger, solar MPPT, alternator or DC-to-DC charger, and generator charging independently. Confirm LiFePO4 profile, voltage, current, equalization settings, temperature behavior, and cable protection for each source.
Measure the battery bay and cable path
Record usable dimensions, terminal clearance, hold-down locations, cable bend radius, ventilation or thermal requirements, water exposure, service access, and the route to protection devices. Secure the battery for vehicle motion without stressing the case.
Compare the VolTrust 12V options

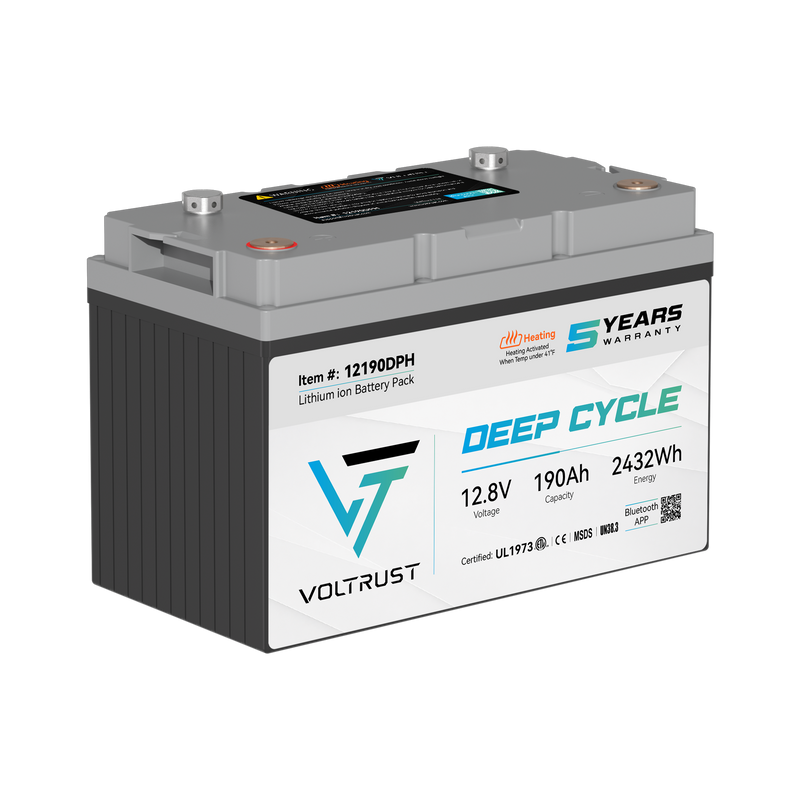

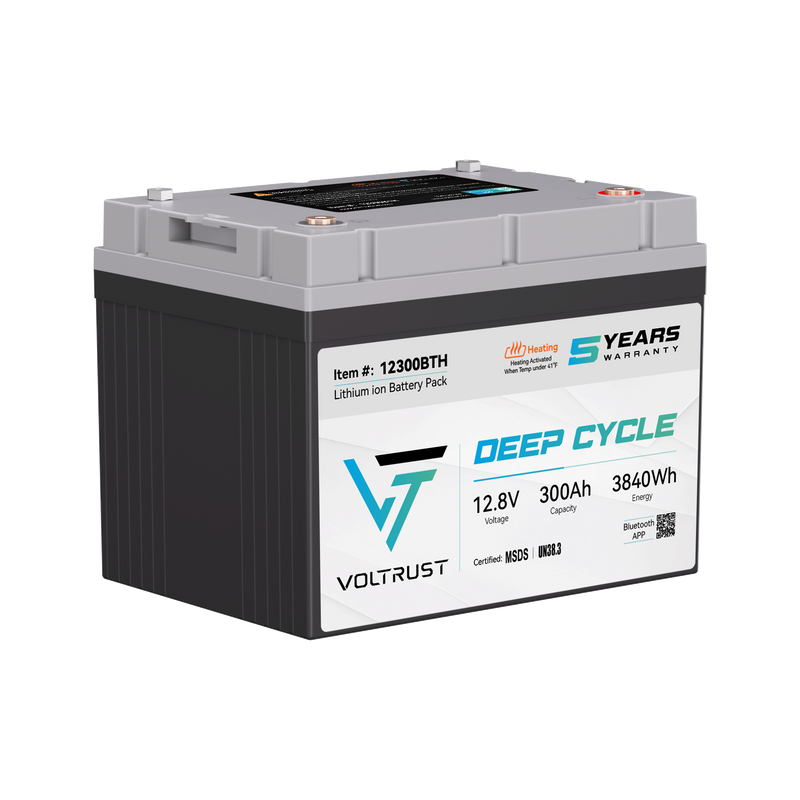

Compare 12190DPH 190Ah and 12300BTH 300Ah only after voltage, current, charging, fit, and mounting are confirmed. The 12190DPH stores about 2.43kWh nominal energy; the 12300BTH stores about 3.84kWh. Runtime still depends on planned usable energy and real load.
Protect cold-weather charging
Both models have documented low-temperature charge protection and internal heating, but thresholds and operating instructions must be taken from the exact manual. Do not assume solar or alternator charging will automatically coordinate with the heater.
Build an RV energy budget before choosing amp-hours
| Load group | Record | Convert to daily energy |
|---|---|---|
| Direct 12V loads | Average amps and hours | Volts x amps x hours |
| Inverter loads | Running watts and hours | AC watt-hours / expected inverter efficiency |
| Cycling loads | Measured watt-hours over a representative day | Use the measured daily total |
| Intermittent loads | Power, minutes per use, uses per day | Watts x total hours |
| Reserve | Weather, travel delay, or no-charge period | Add reserve after the base day is known |
Do not add appliance nameplate watts for 24 hours unless each appliance truly runs continuously.
Size from watt-hours whenever DC and AC loads share the same system. Amp-hours are useful only after voltage is fixed. Keep a separate peak-power list for microwave ovens, pumps, compressors, coffee makers, and other starting or heating loads.
Check whether the battery can support the inverter
A large capacity does not automatically supply a large inverter. Divide AC load watts by battery voltage and expected efficiency to estimate DC current, then compare continuous and surge demand with the battery, inverter, cables, connections, and protection devices on the same time basis. Have the final high-current design reviewed by a qualified installer.
Plan how the energy will be replaced
| Charging source | Evidence to collect | Planning question |
|---|---|---|
| Shore charger | Battery profile, volts, amps, and termination | How many charging hours are available? |
| Solar | Array watts, controller limits, measured daily yield | How much energy returns in typical weather? |
| Alternator or DC-DC | Alternator rating, DC-DC settings, cable path | Can the source supply the planned rate safely? |
| Generator | AC output, charger input, run-time limits | What is the practical recharge window? |
A battery bank that covers two days of use may still be inconvenient if the installed charging system needs much longer to recover it. Compare daily consumption with realistic daily charging, not only the charger's label maximum.
Compare the two VolTrust 12V planning paths
The 12190DPH 12.8V 190Ah battery stores about 2.43kWh of nominal energy, while the 12300BTH 12.8V 300Ah battery stores about 3.84kWh. The larger model offers more nominal energy, but current demand, dimensions, weight, charger, mounting, and permitted series or parallel configuration must still be checked in the exact manual.
Use the current manual and support resources
Use the Product Documents area on the VolTrust 12190DPH 12.8V 190Ah battery page together with the VolTrust product resources page. For this topic, verify watt-hours for dc and ac loads and shore, solar, alternator, generator energy against the exact manual. A related model's charging, current, temperature, terminal, torque, configuration, warning, or installation rules are not interchangeable.
Related decisions to resolve next
- Self-Heating LiFePO4 Batteries for Cold-Weather RV Use
- 12V 190Ah vs 300Ah LiFePO4 Batteries for RV Power
When the compatibility worksheet is complete, review the VolTrust marine and RV battery collection. For an unresolved electrical or fitment question, contact VolTrust support before ordering.
Frequently asked questions
What should I record about daily energy?
Record watt-hours for DC and AC loads under a known operating condition, and keep the source and date with the project notes. That information sets required capacity. A typical value from another installation is not a substitute for evidence from this system.
How do I verify peak power before buying?
Use inverter surge and direct-DC starts and compare it with the exact equipment manuals. This check tests current capability. Resolve missing labels, undocumented modifications, and conflicting specifications before treating the product as compatible.
Why can recharge change the answer?
It can change the answer because it determines recovery. Document shore, solar, alternator, generator energy, then use the same condition when comparing products or repeating a test so the result remains meaningful.
When should I get professional help with travel reserve?
Get qualified help when confirming no-charge days and weather margin requires opening energized equipment, changing high-current or building wiring, selecting protective devices, or interpreting conflicting manufacturer instructions. This part of the worksheet matters because it protects availability.
Where can I confirm the exact VolTrust model limits?
Use the Product Documents section on the VolTrust 12190DPH 12.8V 190Ah battery page and the current VolTrust support resources. Do not borrow charging, current, temperature, torque, or configuration rules from another battery model.
