What Is a Hybrid Inverter and How Does It Work should be answered at the system level. Match the inverter to the backed-up loads, solar array, battery voltage window, charge and discharge limits, communication method, and local electrical requirements. A battery or inverter nameplate alone is not enough to prove compatibility.

Map AC loads, battery limits, solar input, grid or generator behavior, and required permits before comparing hybrid inverters. This page provides the system framework; exact equipment selection and installation should be reviewed by a qualified professional.

Map the system before comparing equipment

Use this worksheet before treating a product as compatible. Record the source of every answer instead of relying on memory or a seller's generic voltage label.

Check What to record Why it matters
Loads Continuous watts, motor surge, 120/240V needs Defines inverter output
Battery Voltage window, current limit, protocol Defines safe battery operation
Solar Array voltage/current and MPPT window Prevents PV input mismatch
Backup Transfer behavior and critical-load panel Defines outage performance
Site Permits, utility rules, protection, grounding Controls installation scope

Verify every system interface

Stage Action Evidence retained
Define the decision Confirm AC loads and Battery interface Keep continuous, surge, voltage, and phase and voltage, current, communication, and capacity
Check the system Document PV interface Record cold string voltage, current, power, and mppt
Plan validation Test or review Operating modes Observe grid, backup, time-of-use, off-grid, and generator
Close open items Assign every conditional or unresolved item Record the source, owner, and next action

Translate desired behavior into a power-flow diagram before comparing inverter wattage. The hybrid inverter, battery, solar array, transfer equipment, loads, grid rules, and commissioning settings form one system.

Establish AC loads

Establish AC loads from continuous, surge, voltage, and phase. This evidence defines inverter output. Note the source, date, operating condition, and any uncertainty so an installer or reviewer can reproduce the conclusion.

Confirm battery interface

Confirm battery interface before moving to capacity or price. Use voltage, current, communication, and capacity; a typical value from another cart or system is not evidence for this installation. This check defines storage compatibility. If labels and manuals disagree, pause and resolve the conflict.

Document PV interface

Add PV interface to the project record using cold string voltage, current, power, and MPPT. This detail defines array compatibility. Photograph labels and measurements where practical, and identify any non-stock equipment or modified settings rather than mixing them with factory specifications.

Validate operating modes

After the paper review, validate operating modes under a representative, controlled condition. Compare the observation with grid, backup, time-of-use, off-grid, and generator. This check defines system behavior. A favorable no-load reading is not enough; review warnings, connection temperature, voltage behavior, and the rest of the system before normal use.

Turn the findings into a go or no-go decision

Write one conclusion that addresses AC loads, Battery interface, PV interface, and Operating modes. Mark each item confirmed, conditional, or unresolved. A go decision requires every safety- and compatibility-critical item to be confirmed from a current manual, equipment label, measurement, or qualified review. Conditional items need a named action and owner; unresolved items are reasons to pause the purchase or installation, not details to solve after energizing the system. State which source confirmed AC loads, who is responsible for resolving Battery interface, and what observation would cause the decision about PV interface to be reviewed again.

Use a controlled validation plan

Before the check, capture continuous, surge, voltage, and phase and voltage, current, communication, and capacity. During a supervised test, keep the starting condition repeatable and observe cold string voltage, current, power, and mppt. Afterward, inspect and record grid, backup, time-of-use, off-grid, and generator, warnings, unusual heat, connection movement, and any change from the expected behavior. Stop immediately if the procedure would require bypassing protection, exceeding a documented limit, or working on energized equipment without the required qualifications.

Map power flow before choosing an inverter

Draw the solar array, grid or generator, hybrid inverter, battery, critical-load panel, noncritical loads, disconnects, and monitoring. Then mark which direction power may flow in normal operation, charging, outage, and recovery. This reveals assumptions that a simple equipment list misses.

Size continuous output and surge separately

Add the loads that can run at the same time, then identify motors, pumps, compressors, and transformers with starting surge. The inverter needs enough output for the intended load sequence, while the battery must supply the corresponding DC current within its verified limits.

Match every electrical and communication interface

Interface What must match Question to ask
Battery DC Voltage window and current limits Can the inverter stay within every battery limit?
Communication Protocol, pinout, profile, and firmware Is this exact battery/inverter pairing supported?
Solar MPPT Array voltage, current, and power Does the string design remain inside the MPPT window?
AC output Continuous power, surge, and 120/240V needs Which loads can start and run together?
Grid/generator Transfer, charging, export, and neutral rules How does the system behave in each operating mode?

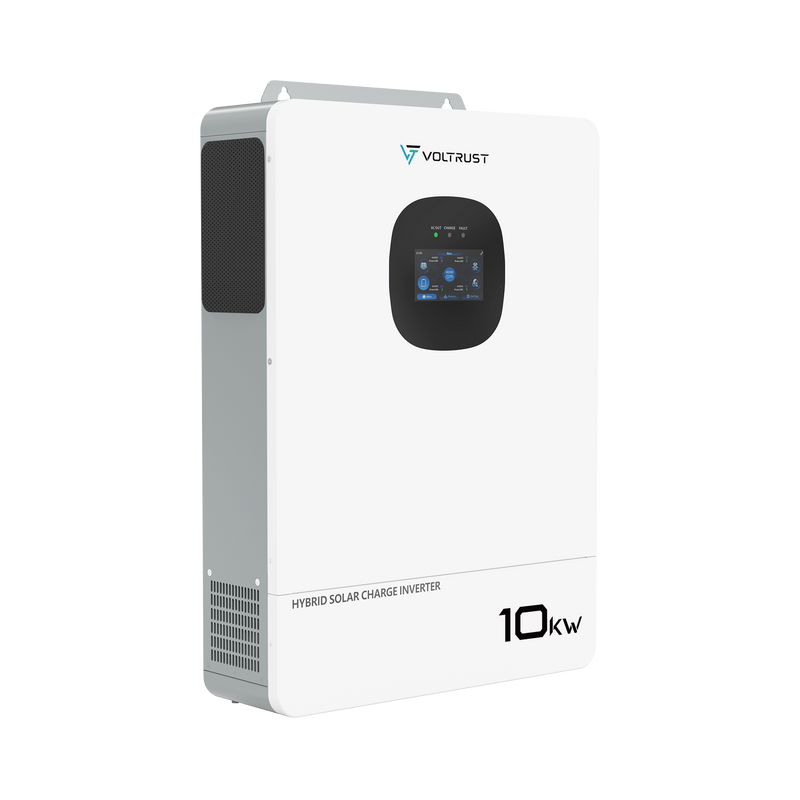

Check solar input independently of AC output

A 10kW AC inverter does not automatically accept any 10kW array. String open-circuit voltage changes with temperature; current depends on parallel strings; and the MPPT has minimum, maximum, and operating windows. Use module data and the exact inverter manual for string design.

Define backup behavior

Confirm transfer time, critical-load panel design, black-start behavior, generator interaction, grid-charging rules, export limits, reserve state of charge, and what happens when solar is available but the grid is down. These behaviors differ by model and configuration.

Plan professional installation and commissioning

A qualified installer should confirm protection, conductor sizing, disconnects, grounding and bonding, neutral handling, permits, utility interconnection, firmware, communications, and final settings. Record the approved configuration for future service.

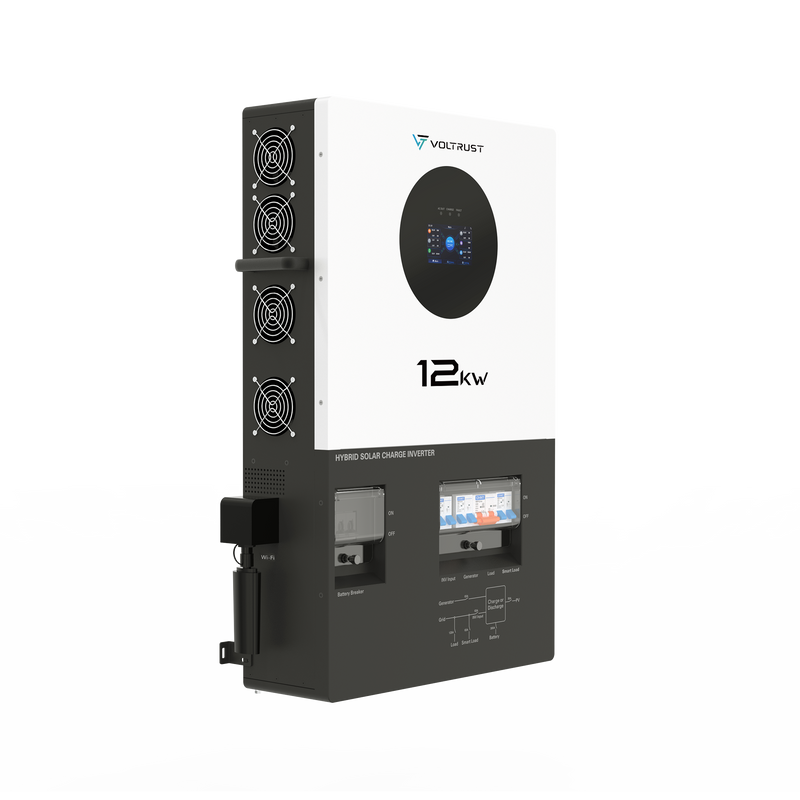

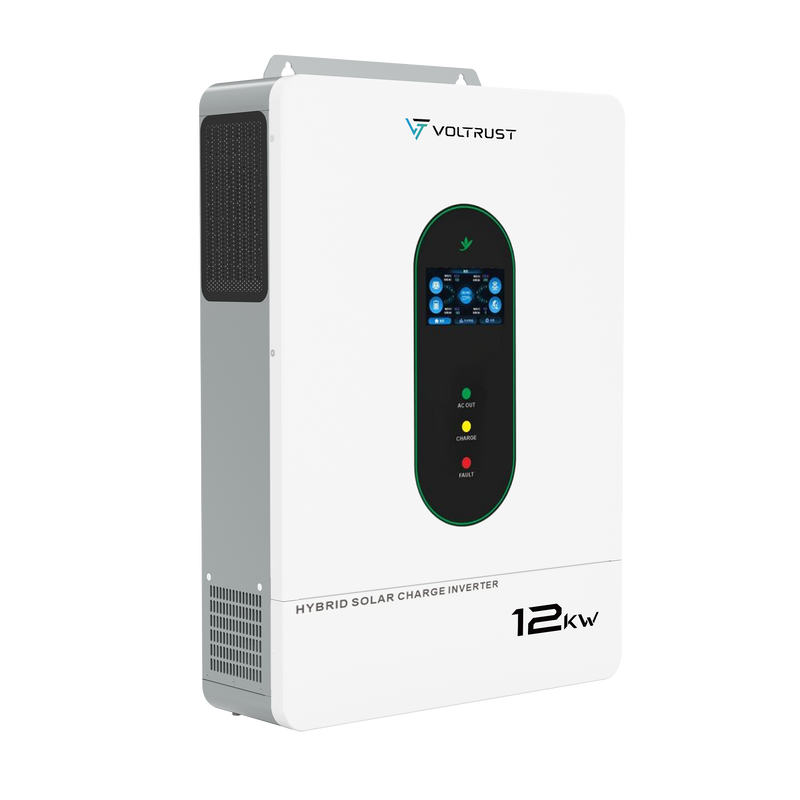

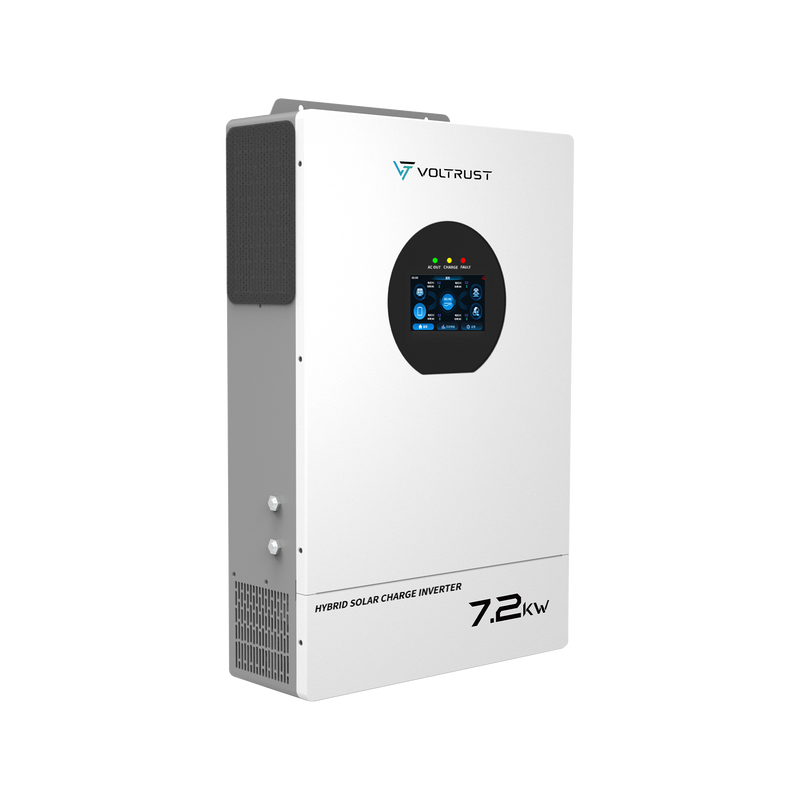

Understand what the hybrid inverter is coordinating

A hybrid inverter can manage more than DC-to-AC conversion. Depending on the model and approved configuration, it may coordinate solar MPPT input, battery charging and discharging, grid import or export, backup transfer, generator input, and operating schedules. The exact manual controls which functions are available and how they interact.

Define the operating modes before comparing models

Operating mode Source priority to define Questions to resolve
Grid-tied self-consumption Solar, load, battery, grid Export rules and charge schedule
Backup Battery and solar to critical loads Transfer time, neutral, surge, and reserve
Time-of-use Grid charge and discharge schedule Tariff, reserve, and cycle strategy
Off-grid Solar, battery, and generator Worst-season recovery and generator control
Generator-assisted Generator to loads and charger Input limits, start logic, and grounding

Mode names are not standardized across brands. Write the required source priority and outage behavior in plain language, then confirm the inverter can implement it with the selected battery, meter, transfer equipment, and local grid rules.

Size the inverter at every interface

Design layer Required evidence Failure if ignored
AC output Continuous load, surge, voltage, and phases Overload or inability to start motors
Battery Voltage window, DC current, protocol, and capacity Protection events or failed communication
PV input Cold-weather string voltage, current, and power MPPT overvoltage or clipping
Transfer and panel Critical circuits and simultaneous load Unexpected outage performance
Site rules Permit, utility, protection, and grounding Unsafe or non-compliant installation

An inverter can pass an AC-load check and still fail the battery-current or PV-string check. Complete every layer on one worksheet and use the most restrictive verified limit in the final design.

Match the battery by voltage, current, and control method

For a 48V-class home-storage project, the VolTrust LS51314 provides about 16.08kWh nominal energy from its public 51.2V and 314Ah values. That calculation does not prove inverter compatibility. Confirm the voltage window, charge and discharge limits, cable and protection design, communication protocol or approved open-loop settings, firmware, and commissioning sequence from current documentation.

Treat installation as a designed electrical system

Final conductor sizes, protection, disconnects, grounding and bonding, transfer equipment, rapid-shutdown or utility functions, clearances, labels, permits, and inspections depend on equipment and jurisdiction. Have the design and commissioning completed or reviewed by qualified professionals.

Use the current manual and support resources

Use the Product Documents area on the VolTrust hybrid inverter collection page together with the VolTrust product resources page. For this topic, verify continuous, surge, voltage, and phase and cold string voltage, current, power, and mppt against the exact manual. A related model's charging, current, temperature, terminal, torque, configuration, warning, or installation rules are not interchangeable.

Related decisions to resolve next

When the compatibility worksheet is complete, review the VolTrust hybrid inverter collection. For an unresolved electrical or fitment question, contact VolTrust support before ordering.

Frequently asked questions

What should I record about AC loads?

Record continuous, surge, voltage, and phase under a known operating condition, and keep the source and date with the project notes. That information defines inverter output. A typical value from another installation is not a substitute for evidence from this system.

How do I verify battery interface before buying?

Use voltage, current, communication, and capacity and compare it with the exact equipment manuals. This check defines storage compatibility. Resolve missing labels, undocumented modifications, and conflicting specifications before treating the product as compatible.

Why can PV interface change the answer?

It can change the answer because it defines array compatibility. Document cold string voltage, current, power, and MPPT, then use the same condition when comparing products or repeating a test so the result remains meaningful.

When should I get professional help with operating modes?

Get qualified help when confirming grid, backup, time-of-use, off-grid, and generator requires opening energized equipment, changing high-current or building wiring, selecting protective devices, or interpreting conflicting manufacturer instructions. This part of the worksheet matters because it defines system behavior.

Where can I confirm the exact VolTrust model limits?

Use the Product Documents section on the VolTrust hybrid inverter collection page and the current VolTrust support resources. Do not borrow charging, current, temperature, torque, or configuration rules from another battery model.

Can any 48V-class battery work with any hybrid inverter?

No. Confirm the inverter's battery voltage window, charge and discharge current, required communication protocol, approved open-loop settings if supported, firmware, and the battery manufacturer's pairing and installation rules.
