Home Battery Storage Basics: Capacity, Power and Backup Runtime is mainly a load-planning decision. Start with the appliances that must stay on, their running and starting watts, and the number of hours of backup you want. A 51.2V 314Ah pack stores about 16.08kWh of nominal energy by calculation, but usable energy and runtime depend on system settings, inverter losses, temperature, and reserve requirements.
Build a critical-loads worksheet before comparing batteries. Separate energy in kilowatt-hours from power in kilowatts: energy affects duration, while power determines which loads can run at the same time.
Start with loads, power, and energy
Use this worksheet before treating a product as compatible. Record the source of every answer instead of relying on memory or a seller's generic voltage label.
| Check | What to record | Why it matters |
|---|---|---|
| Critical loads | Running watts, starting watts, hours per day | Defines power and energy demand |
| Battery | Nominal energy, usable DoD, charge/discharge limit | Prevents an energy-only sizing mistake |
| Inverter | Battery voltage window, continuous/surge output | Must support the loads and battery |
| Solar/grid | Available charging power and outage behavior | Determines recovery time |
| Installation | Location, clearances, disconnects, code review | Affects safety and serviceability |
Build the backup plan from measured loads
| Stage | Action | Evidence retained |
|---|---|---|
| Define the decision | Confirm Energy and Power | Keep daily critical-load kwh and outage duration and simultaneous running kw and largest surge |
| Check the system | Document Recovery | Record solar, grid, or generator charging per day |
| Plan validation | Test or review Installation | Observe panel, transfer, location, protection, and permits |
| Close open items | Assign every conditional or unresolved item | Record the source, owner, and next action |
Build a critical-load worksheet before choosing equipment. Use the LS51314's calculated 16.08kWh nominal energy as one transparent input, then apply only verified usable-energy, efficiency, and current limits.
Establish energy
Establish energy from daily critical-load kWh and outage duration. This evidence sets storage duration. Note the source, date, operating condition, and any uncertainty so an installer or reviewer can reproduce the conclusion.
Confirm power
Confirm power before moving to capacity or price. Use simultaneous running kW and largest surge; a typical value from another cart or system is not evidence for this installation. This check sets inverter and battery output. If labels and manuals disagree, pause and resolve the conflict.
Document recovery
Add recovery to the project record using solar, grid, or generator charging per day. This detail determines multi-day resilience. Photograph labels and measurements where practical, and identify any non-stock equipment or modified settings rather than mixing them with factory specifications.
Validate installation
After the paper review, validate installation under a representative, controlled condition. Compare the observation with panel, transfer, location, protection, and permits. This check defines a safe complete system. A favorable no-load reading is not enough; review warnings, connection temperature, voltage behavior, and the rest of the system before normal use.
Turn the findings into a go or no-go decision
Write one conclusion that addresses Energy, Power, Recovery, and Installation. Mark each item confirmed, conditional, or unresolved. A go decision requires every safety- and compatibility-critical item to be confirmed from a current manual, equipment label, measurement, or qualified review. Conditional items need a named action and owner; unresolved items are reasons to pause the purchase or installation, not details to solve after energizing the system. State which source confirmed Energy, who is responsible for resolving Power, and what observation would cause the decision about Recovery to be reviewed again.
Use a controlled validation plan
Before the check, capture daily critical-load kwh and outage duration and simultaneous running kw and largest surge. During a supervised test, keep the starting condition repeatable and observe solar, grid, or generator charging per day. Afterward, inspect and record panel, transfer, location, protection, and permits, warnings, unusual heat, connection movement, and any change from the expected behavior. Stop immediately if the procedure would require bypassing protection, exceeding a documented limit, or working on energized equipment without the required qualifications.
Separate battery energy from inverter power
A battery's kilowatt-hours describe stored energy. The inverter's kilowatts describe how much AC load it can supply at once. A large battery can still shut down a small inverter, and a large inverter can ask for more battery current than the battery permits. Size both sides of the system.
Build the critical-loads list
| Load group | Record | Sizing consequence |
|---|---|---|
| Always-on loads | Average watts x hours | Creates the daily energy baseline |
| Motor loads | Running watts and starting surge | Sets inverter surge requirements |
| Optional loads | Can they be shed during an outage? | Protects reserve for essential equipment |
| Recharge source | Grid, solar, or generator power and availability | Determines recovery time |
| Reserve | Minimum state of charge to preserve | Reduces planned usable energy |
Use appliance labels as a starting point, then measure actual consumption where practical. Refrigerators, pumps, compressors, and power tools need special attention because their starting demand can be much higher than their running demand.
Estimate backup runtime without promising an exact number
Formula: estimated runtime (hours) = nominal battery energy (kWh) x planned usable fraction x system efficiency / average load (kW).
| Illustrative average load | Nominal energy | Example usable assumptions | Estimated runtime |
|---|---|---|---|
| 0.5kW | 16.08kWh | 80% planned use; 90% system efficiency | About 23.2 hours |
| 1.0kW | 16.08kWh | 80% planned use; 90% system efficiency | About 11.6 hours |
| 2.0kW | 16.08kWh | 80% planned use; 90% system efficiency | About 5.8 hours |
Illustrative calculation only: 16.0768kWh x 0.80 x 0.90 / average load. Confirm the battery's allowed depth of discharge, inverter efficiency, reserve, and real load before use.
Match the battery and hybrid inverter
Confirm the inverter's battery voltage window, charge and discharge current, supported communication protocol, open-loop operating rules if available, low- and high-voltage limits, and required firmware. A nominal 48V or 51.2V label is only the first check.
Plan how the battery will recharge
Estimate available solar power after weather and seasonal variation, the inverter's charging limit, grid or generator availability, and the time available between outages. More battery capacity without enough charging power can leave the system partly recovered for the next event.
Treat installation as an electrical project
A qualified installer should review conductor sizing, overcurrent protection, disconnects, grounding and bonding, enclosure location, service clearances, ventilation or thermal requirements, permits, and utility rules. Use VolTrust support for current product documentation before the design is finalized.
Separate backup energy from backup power
Kilowatt-hours describe how long a set of loads may run; kilowatts describe how much can run at once. A battery may contain enough energy for an overnight outage but still be unable to start a large motor, and a high-power inverter does not create additional stored energy. Size both dimensions from the same critical-load list.
Build the critical-load list
| Critical load | Running power | Starting demand | Hours needed |
|---|---|---|---|
| Refrigeration | Measure a representative cycle | Compressor start | Outage duration and duty cycle |
| Lighting and internet | Add actual adapters and fixtures | Usually modest | Required occupied hours |
| Well or sump pump | Use motor label plus measured behavior | Potentially high | Expected cycles |
| HVAC | Equipment-specific | Often high | Only if the system is designed for it |
| Medical or essential device | Manufacturer data | Device-specific | Required continuity plus reserve |
Use an electrician or qualified system designer when a critical circuit, motor load, transfer device, or code requirement is uncertain.
Measure loads where practical because duty cycle, thermostat setting, outdoor temperature, equipment age, and standby power can change daily consumption. Decide which circuits are essential, which are optional, and which should remain excluded during an outage.
Use LS51314 as the primary 16kWh-class planning path
| Planning step | Calculation | What it means |
|---|---|---|
| Nominal energy | 51.2V x 314Ah = 16,076.8Wh | About 16.08kWh stored by nameplate calculation |
| Planned available energy | Nominal energy x verified usable fraction | Requires current product and system documentation |
| AC energy | Available DC energy x expected conversion efficiency | Accounts for inverter and system loss |
| Estimated runtime | AC energy / average critical-load kW | A planning estimate, not a guarantee |
| Reserve | Subtract a planned emergency margin | Allows for uncertainty and changing loads |

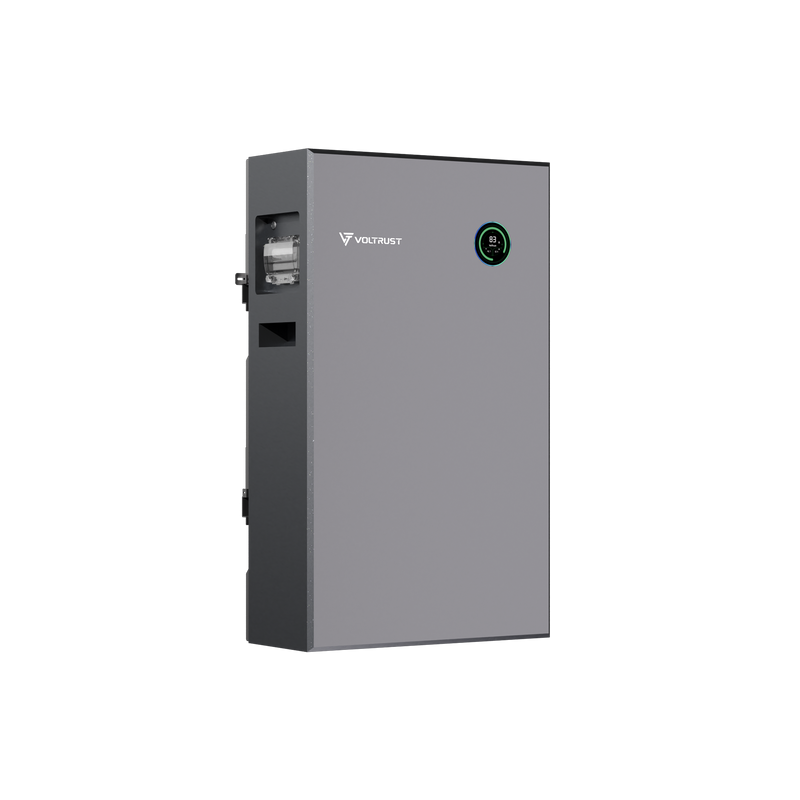

The VolTrust LS51314 51.2V 314Ah Powerwall battery is the primary home-storage model in this content program. Its public voltage and capacity calculate to about 16.08kWh nominal energy. Do not present that number as guaranteed usable energy or runtime; current limits, usable depth of discharge, efficiency, reserve, temperature, communication, and inverter compatibility still have to be verified.
Map solar, inverter, grid, generator, and backup loads
| Interface | Must be confirmed | Common planning error |
|---|---|---|
| Battery to inverter | Voltage window, current, communication, approved settings | Assuming every 48V-class device pairs |
| Solar to inverter | MPPT voltage, current, and power window | Comparing array watts only |
| Grid or generator | Charge input, transfer behavior, neutral and ground design | Assuming backup behavior from mode names |
| Critical-load panel | Circuit list, simultaneous demand, and surge | Backing up an entire service without a load study |
| Site | Location, clearances, disconnects, and permits | Selecting equipment before installation review |
Draw the power path and operating modes before selecting hardware. The same equipment can behave differently during normal solar self-consumption, time-of-use shifting, a short grid outage, a long outage, or generator-assisted charging.
Plan installation and commissioning as part of the purchase
Home energy storage includes electrical protection, disconnects, grounding and bonding, transfer equipment, conductor routing, environmental limits, clearances, permits, inspections, utility rules, and manufacturer commissioning. Use current equipment documentation and qualified professionals; do not treat a product page as an installation design.
Use LS51314 as the primary home-storage pathway
The VolTrust LS51314 Powerwall battery is the primary home-storage product in this content cluster. Its public 51.2V and 314Ah values calculate to about 16.08kWh nominal energy. The basics guide uses that number only after separating energy duration from power demand and after marking usable energy, current, efficiency, reserve, and inverter pairing as items that require current documentation.
Use the current manual and support resources
Use the VolTrust LS51314 51.2V 314Ah Powerwall battery page and the VolTrust product resources page to close the open questions about Energy and Power. Look specifically for evidence covering daily critical-load kwh and outage duration and simultaneous running kw and largest surge. If the current LS51314 manual or compatibility document does not verify the needed value, request it from VolTrust and keep that item unresolved.
Related decisions to resolve next
- 51.2V 314Ah Home Energy Storage Battery: Capacity and Planning Guide
- How to Size a Home Battery for Essential Backup Loads
When the compatibility worksheet is complete, review the VolTrust home energy storage collection. For an unresolved electrical or fitment question, contact VolTrust support before ordering.
Frequently asked questions
What should I record about energy?
Record daily critical-load kWh and outage duration under a known operating condition, and keep the source and date with the project notes. That information sets storage duration. A typical value from another installation is not a substitute for evidence from this system.
How do I verify power before buying?
Use simultaneous running kW and largest surge and compare it with the exact equipment manuals. This check sets inverter and battery output. Resolve missing labels, undocumented modifications, and conflicting specifications before treating the product as compatible.
Why can recovery change the answer?
It can change the answer because it determines multi-day resilience. Document solar, grid, or generator charging per day, then use the same condition when comparing products or repeating a test so the result remains meaningful.
When should I get professional help with installation?
Get qualified help when confirming panel, transfer, location, protection, and permits requires opening energized equipment, changing high-current or building wiring, selecting protective devices, or interpreting conflicting manufacturer instructions. This part of the worksheet matters because it defines a safe complete system.
Where can I confirm the exact VolTrust model limits?
Use the Product Documents section on the VolTrust LS51314 51.2V 314Ah Powerwall battery page and the current VolTrust support resources. Do not borrow charging, current, temperature, torque, or configuration rules from another battery model.
How is the LS51314 described as a 16kWh battery?
Its public model values are 51.2V and 314Ah. Multiplying voltage by amp-hours gives 16,076.8Wh, or about 16.08kWh of nominal energy. Usable backup energy is lower and depends on verified system limits, efficiency, reserve, and operating conditions.
